Description
Product Description

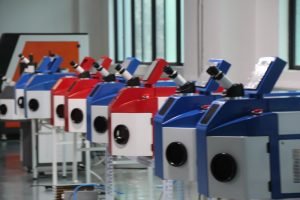

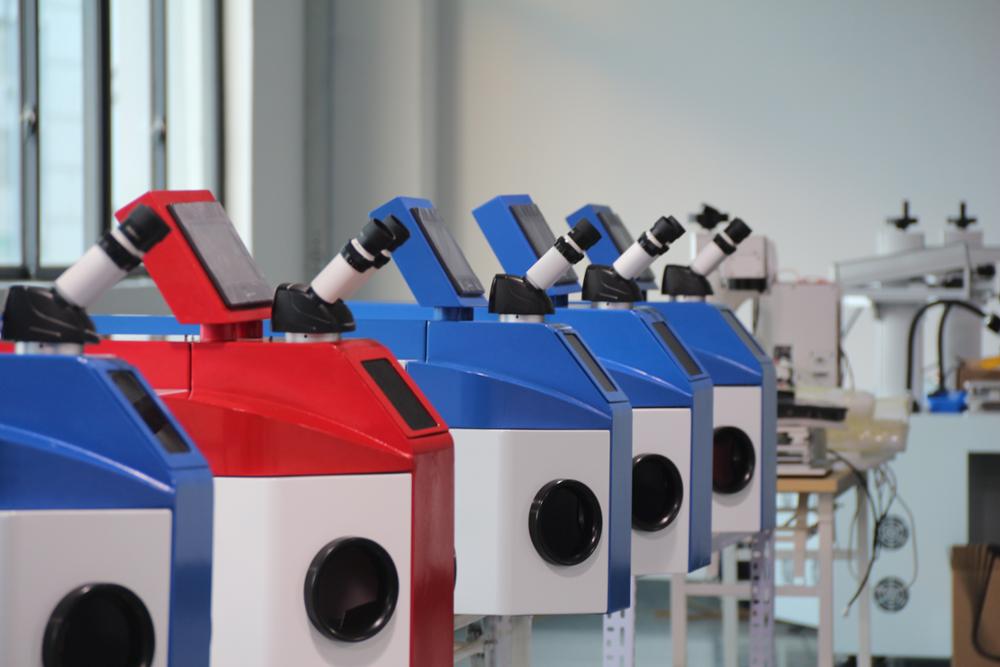

HRC Laser Welding Machine applies high energy pulse to heat a specific tiny area of certain materials. Laser welding is a new type welding technology, mainly on thin materials and precision components. It can achieve spot weld, butt weld, stitch weld, seal weld. Its advantages are high positional accuracy, being easy to realize robotization
1.This type machine is designed according to ergonomics, which meets the need of exquisiteness, blazonry, stable performance of jewelry industry, and is suitable for long and continuous working time
2.Big inner space, convenient for the placing of tools and tongs.
3.A laser spot and parameter switch is installed in the working zone.
4.Being convenient to clean the working zone ant to collect the welding chips.
5.Annular, shadowless, adjustable brightness LED-lamp makes it clearer when observe the welding area.
6.More subtle laser spot meets the needs of subtle welding.
Our machines are widely used on the jewelry industry, dental , glasses ,stainless steel.
the jewelry laser welding machine is high precision equipment,the facula diameter can up to 0.3-3mm,
and laser power from 150 watts to 200 watts,according to your request that we will recommend you the best solution.
Model Number | HRC-150A/HRC-200A |
Laser Source | ND3+ YAG |
Wavelength | 1064nm |
Max Laser Power | 240W |
Pulse energj | 100J |
Pulse Width | 0.1-20ms |
Facula Diameter | 0.3-3.0mm |
Observing system | Microscope or CCD camera |
Cooling | Water chiller |
Power consumption | 5.5kw |
Language | English |
Power Supply | 220V 50Hz |
Xenon lamp | From China |
Parameter Prestore | Bring |
Gross Weight | 110kg |
Dimension | 1030*620*820mm |
