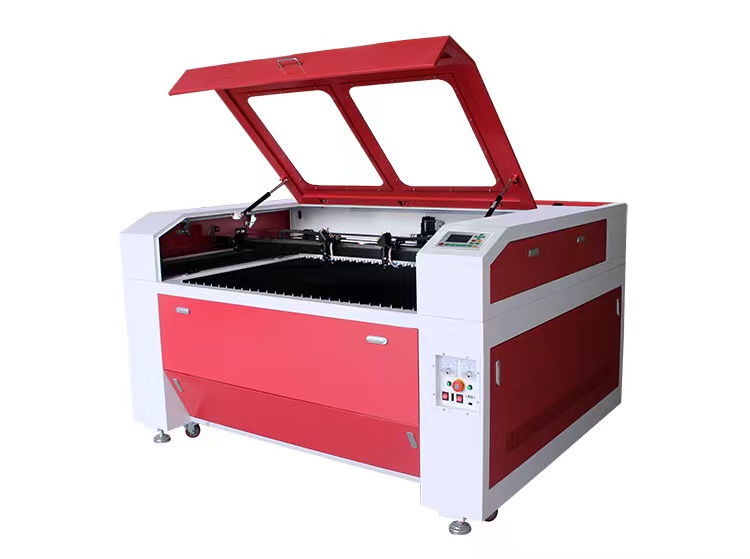

Laser engraving and cutting machine T Series

Laser engraving and cutting machine T Series

Product Application

This machine adopt imported dual linear guide and DSP system control software.The machine has stable performance and applicable for different industries.

Applicable materials:
wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.

Description

This machine adopt imported dual linear guide and DSP system control software.The machine has stable performance and applicable for different industries.

Applicable materials:
wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.

Applicable industries:
advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry.

Specification
Model
HRC1290 (4060/6090/1390/1610 option)
Work area
900*1200mm
Laser power
80w ( 100/130/150w option)
Laser type
co2
Water chiller
CW3000 (5000/5200 option)
Laser head No.
One
Linear rail
Taiwan square guide rail
Table
Blade & Honeycomb table
Cooling mothod
Water cooling/water break protection
Engrave speed
0~1000mm/s
Cut speed
0~600mm/s
Resolution
±0.01mm
System
DSP (Ruida/Leetro)
Software
Rdworks or Lasercut
Graphic format supported
BMP,PLT,DST,DXF,AI,JPG,etc.
Software supported
Autocad, Coreldraw,Photoshop, etc.
Laser output
0-100%
Operating temperature
0-45℃
Operating Humidity
5-95%
Working mode
Leadshine stepper motor ( Servo motor)
Gross power
1200w
Min shaping character
1*1mm English
Voltage
220V±10%, 50-60Hz, single phase ( 110V- option)
Resolution
4000DPI
Option 1
z axis motorized up-down
Option 2
Auto focus
Package
Plywood case
Machine size
1700*1360*1060mm
Package size
1800*1460*1140mm
N.W
380KGS
G.W
480KGS
