Description
Product Description:

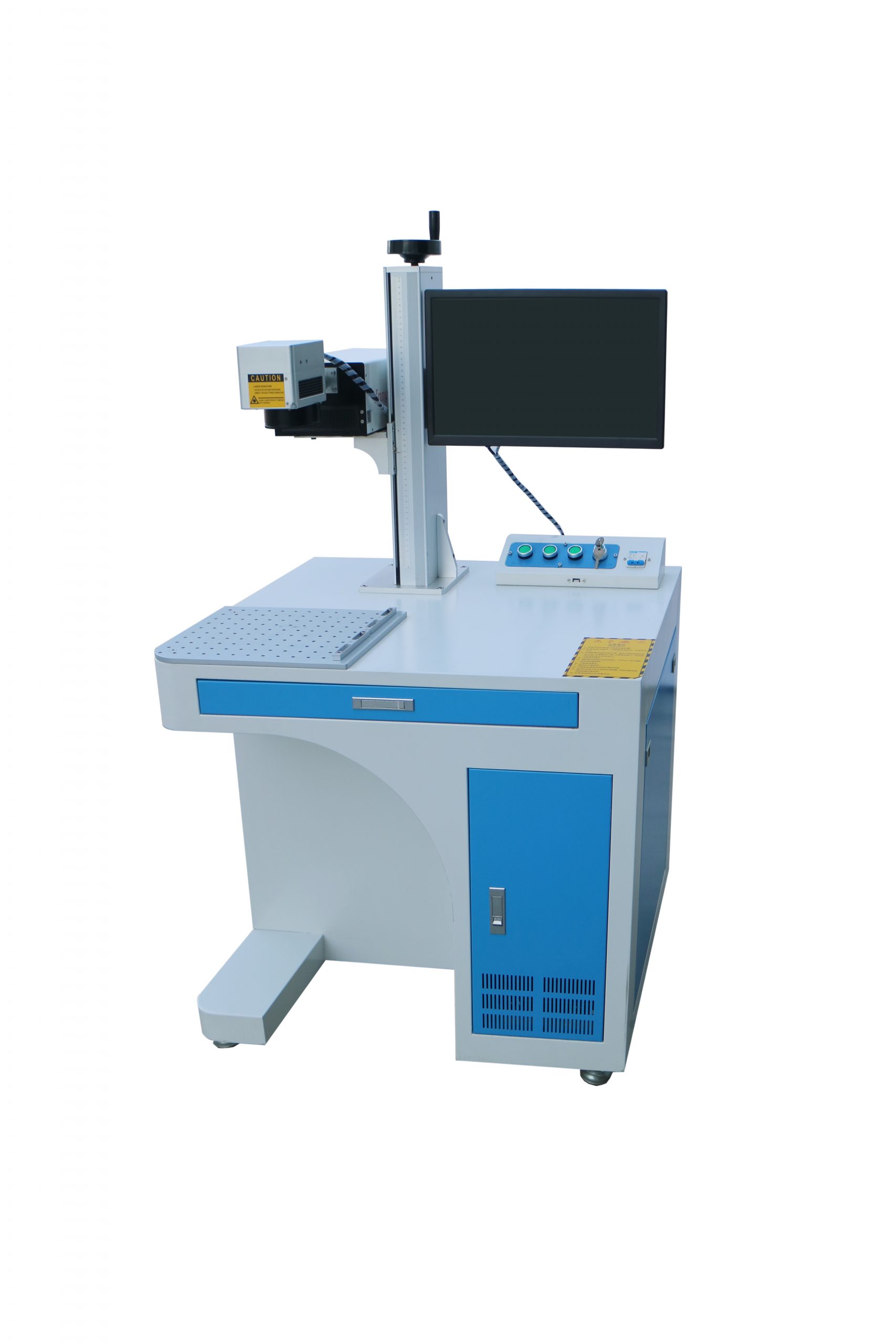

This uv laser marking machine takes 355nm pumped purple light laser device as the light source and take advantage of previous generations machine to gain smaller diameter of focusing spot and fine marking effect.
The metal absorb purple light higher than infrared and therefore more suitable for marking on metal and glass materials compared with infrared pump machine. Narrower pulse width of laser makes a shorter time of processing on materials, thus the materials avoid being deformed or burnt due to thermal. With smaller heat affected area and more beautiful marking effect, our products can meet customer’s demand of higher marking requirements.
Technical Data:
|
Model No.
|
PED-UV-3W/5W
|
PED-UV-7W/10W
|
|
Laser type/wave length
|
355nm
|
|
|
Laser output power
|
3W/5W
|
7W/10W
|
|
Beam quality㎡
|
<1.1
|
<1.3
|
|
Marking speed
|
400 characters per second
|
500 characters per second
|
|
Working area
|
110×110mm or 180×180mm ( adjustable )
|
110×110mm or 180×180mm ( adjustable )
|
|
Machine power
|
800W
|
1200W
|
|
Power supply
|
380V/50-60Hz or 220V/50-60Hz
|
380V/50-60Hz or 220V/50-60Hz
|
|
Minimum character
|
0.1mm
|
0.1mm
|
|
Repeated accuracy
|
±0.001mm
|
±0.001mm
|
|
Minimum line width
|
0.015mm
|
0.015mm
|
|
Life of the laser machine
|
﹥100,000 hours
|
﹥100,000 hours
|
|
Cooling system
|
Water Cooling
|
Water Cooling
|
|
Control interface
|
Standard USB
|
Standard USB
|
|
Overall dimensions
|
900mm×680mm×1200mm
|
900mm×680mm×1200mm
|
Samples:
(1) uv laser engraving machine is widely used in electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories (mobile phone screen, LCD screen) and communication products.
(2) Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.
(3) Pharmaceutical, food, beverage and cosmetics industry.
(4) Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving,clocks and watches and glasses.
(5) UV Laser Marking Machine can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, pervious to light polymer materials, plastic, fire prevention materials etc..
