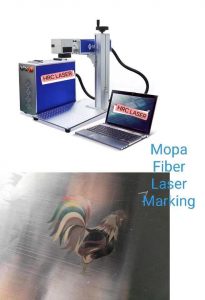

JPT MOPA color laser printer 20w 30w 60w fiber laser marking machine for metal jewelry laser engraving etching machine

JPT MOPA color laser printer 20w 30w 60w fiber laser marking machine for metal jewelry laser engraving etching machine

Applicable Material

All metal , some non-metal material marking such as nylon, ABS, PVC, PES

Description

Mopa Fiber laser marking machine can be used for marking logo, serial number, bar code and other beautiful patterns on any metallic materials such as stainless steel, titanium, brass, gold, silver, aluminum and lots of engineering plastic products such as mobile cover & charger, consume electronics housing and etc

Besides, this machine can mark color on stainless steel.

Our laser marking machine adopts the best quality fiber laser source in the world. We have 10w, 20w, 30w and 50w for optional. The estimated life for laser source will be around 100,000hours, which is 10 times longer life than diode laser and 2 times longer life than other fiber laser source.

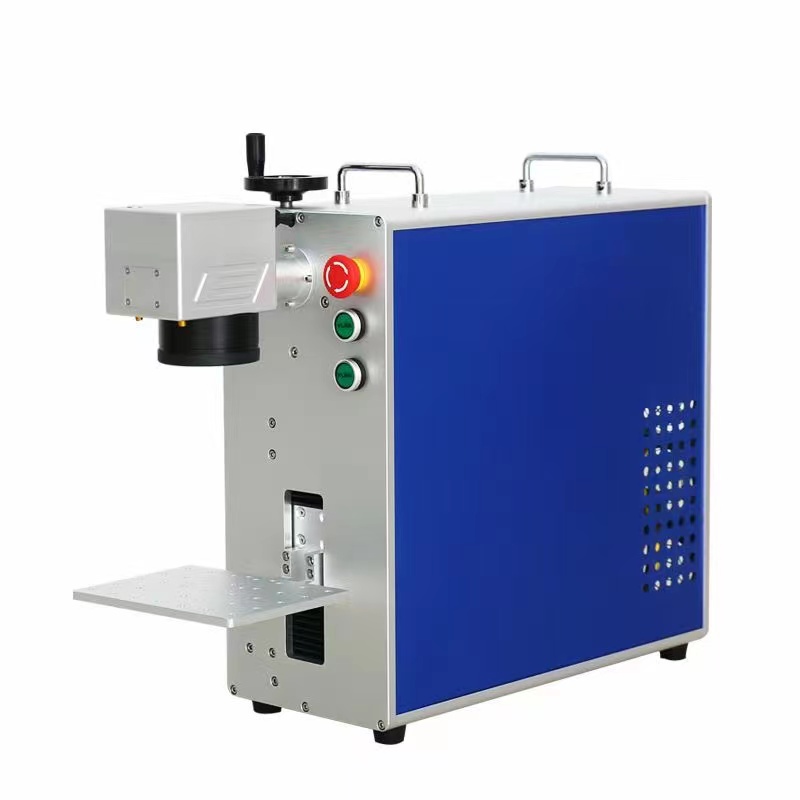

This  Portable desktop Fiber metal Laser  Marking Machine is very easy to use, small, light, moveable. It is your best choice.

Applicable Material

All metal , some non-metal material marking such as nylon, ABS, PVC, PES

Specification:

 Laser Type
Fiber laser
 Laser Power
20W 30W 50W 60W 100W
Model
CN-20W/30W/50W/60W/100W
 Laser Wavelength
1064nm
 Marking Area
75*75mm 110*110mm 150mm*150mm 175mm*175mm 200*200mm 300*300mm
 Marking Depth
≤1.2mm
 Marking Speed
10000mm/s
 Minimum Line Width
0.012mm
 Minimum Character
0.15mm
 Repeated Precision
±0.003mm
 Life-span of Fiber Laser Module
100 000hours
 Beam Quality
M2 <1.5
 Focus Spot Diameter
<0.01mm
 Output Power of Laser
10%~100% continuously to be adjusted
System Operation Environment
Windows XP /7/8/10 32/64bits
Temperature of Operation Environment
15℃~35℃
 Power Input
220/110v single phase
 Power Requirement
<400W
 Communication Interface
USB
 Machine Dimension/after package
760*680*770mm
Optional
Rotary Device, Moving Table, other customized Automation

Standard Configuration Including:

1.China best laser source Raycus.
2.Enclosed type cabinet.
3.Beijing JCZ EZCAD control card.
4.High speed galvo scanning head.
5.Singapore wavelength 110*110mm filed lens.(150mm.175mm,200mm…optional)
6.Double red light for high precision position.
7.Taiwan meanwell power supply.
8.Foot pedal.
9.User’s manual and videos.
10.ISO,CE certification.

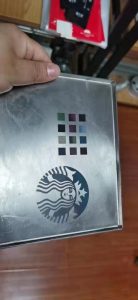

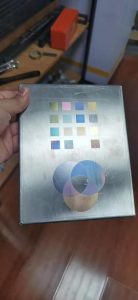

Sample Photo
