The handheld laser marking machine is widely applied for Electronic components, instrumentation, hardware tools, auto parts, daily necessities, jewelry, food and beverage packaging, precision instruments, gifts jewelry, medical equipment and other high-end products, high precision marking printing. Typical applications, such as plastic (PA66) insulation laser marking, metal plate automatic loading and unloading laser marking, packaging box online laser marking, metal mark.
Description
Main Feature:

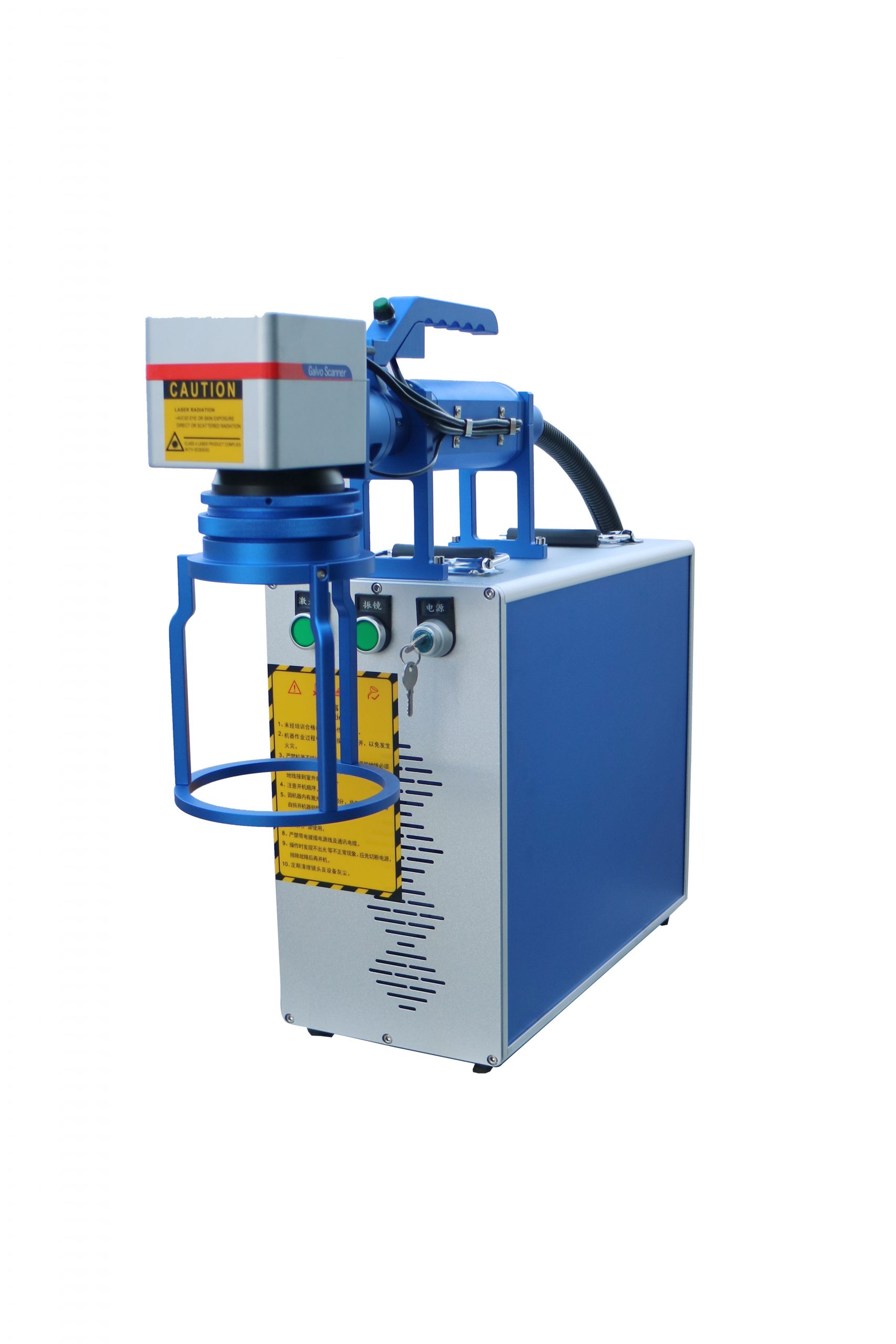

1.Compact and portable:this handheld laser marking machine with small size, light weight, the lhandheld laser marking machine is easy to carry, galvanometer can be rotated 90 degrees according to the requirements, this laser marker is suitable for side marking and pipeline work.
2. Desktop and handheld design: this handheld laser marking machine with removable fixed bracket, to meet a variety of marking needs.
3.Fixed automatic focusing bracket: the hand laser marking machine adopts fixed automatic focusing bracket, and the laser marker is flexible and convenient to use.
4.Laser beam stabilization: laser stability, small loss, free from the outside dust and mechanical impact, laser marker beam stability.
5.The handheld laser marker is maintenance-free, no supplies, and no need to adjust or clean the lens.
6.The handheld laser marking machine processing speed is 2-3 times of the traditional laser marking machine.
7.The spot quality of handheld laser marking machine is good and the peak power is high, and the marking effect can be achieved in the same material.
8.Using automatic lift platform, integrated air-cooled system, integrated design, the appearance of laser marker is simple and beautiful.

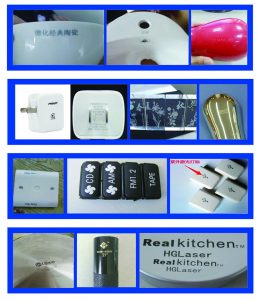

Sample & Application:
The handheld laser marking machine is widely applied for Electronic components, instrumentation, hardware tools, auto parts, daily necessities, jewelry, food and beverage packaging, precision instruments, gifts jewelry, medical equipment and other high-end products, high precision marking printing. Typical applications, such as plastic (PA66) insulation laser marking, metal plate automatic loading and unloading laser marking, packaging box online laser marking, metal mark.
Technical Parameter:
|
Technical Data
|
||||
|
Model
|
HRC-400H
|
|||
|
Type
|
Handheld
|
|||
|
Computer
|
Not includes PC
|
|||
|
Laser Source
|
||||
|
Average output power
|
10W – 50W
|
|||
|
Central emission wavelength
|
1060-1070 nm, Q switch operation Output power adjustment range is 10% -100%
|
|||
|
Polarization
|
random
|
|||
|
Nominal average output power
|
10W – 30W
|
|||
|
Central emission wavelength
|
1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%
|
|||
|
Transmit bandwidth(FWHM)
|
<10 nm
|
|||
|
Long-term average power instability
|
<5%
|
|||
|
Pulse width(FWHM)
|
100 ns
|
|||
|
Laser switching ON time
|
180 μsec
|
|||
|
Laser switching OFF time
|
180 μsec
|
|||
|
Pulse Repetition Rate* kHz
|
20-80 kHz
|
|||
|
Energy per pulse (PRR = 20 kHz)
|
0.95 mJ
|
|||
|
Typical beam quality, M2
|
<1.8
|
|||
|
Output fiber delivery length
|
3m
|
|||
|
Operating voltage
|
220V
|
|||
|
Max. Power consumption
|
600W
|
|||
|
Net Dimensions
|
70*20*50cm
|
|||
|
Net Weight
|
44 kgs
|
|||
|
Gross Weight
|
60 kgs
|
|||
|
Laser system
|
||||
|
Scanning Speed
|
0-7000mm/s
|
|||
|
Marking Speed
|
0-8000mm/s
|
|||
|
Marking size
|
110mm×110mm (F-theta 160)
|
|||
|
Spot size
|
≤ 40 micron (F-theta 160)
|
|||
|
Cooling unit
|
Air cooled
|
|||
|
Pilot laser
|
650nm diode laser, visible red light for marking guide
|
|||
|
Continuous working time
|
≥16h
|
|||
|
Humidity
|
45~85% (no condensation)
|
|||
|
Operating temperature
|
0~40℃
|
|||
|
Control units
|
Laser Mark (English Version)
|
|||
