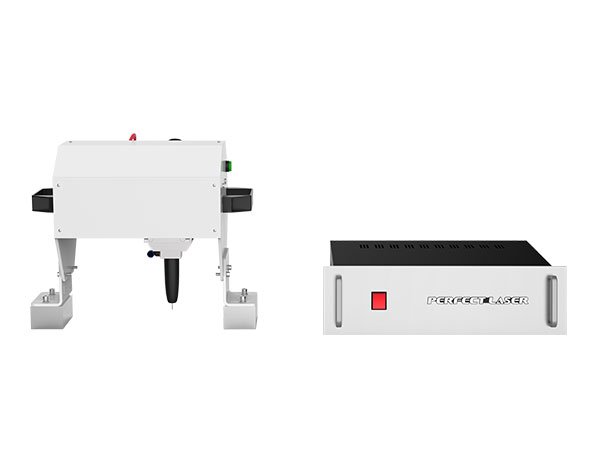

HRC-030 Portable Dot Peen Marking Machine

HRC-030 Portable Dot Peen Marking Machine

HRC Laser is world leading dot peen marking machine manufacturers.
Our portable dot peen marking machine (Model: HRC-030) is suitable for marking on objects that have large size and is not easy to move, such as large size valves and frame, motorcycle chassis and auto-car engines.
This portable dot peen marking machine is handheld type, which can be used on the surface of large metal body which is hard to move.

Description

Main Features

1.Portable dot peen marking machine is portable, so it is suitable for marking on heavy objects with large size and is not easy to move.
2. Portable metal marking machine with 2 separate-body design, convenient operation.
3. Portable dot peen marking machine is controlled by computer, HRC Laser’s professional marking software has a wide application and can operate under Window and XP system. It is very easy to use.
4.Portable dot peen marking machine has a very powerful editing function, and can automatically identify various letters and numbers, such as VIN code, engine number, serial number and so on.
5. Supports AutoCAD and CorelDraw logos and graphics designed in DXF format.
6. Supports multiple fonts including CHRMG fonts in Borland, TTFAuto in Windows, and SHX fonts in CAD.
7. With the function of automatically saving marked content, it can prevent damage caused by shutdown or accidental power failure.

Application

Portable dot peen marking machine is also called a portable dot marking machine, a portable metal marking machine, a numerical point needle marking machine, and a portable pneumatic marking machine. This portable dot peen marking machine can permanently make logos on various metals and some hard plastics. For example, characters and letters can be made on surfaces such as automobiles, motorcycles, machine tools, mechanical parts, metal pipes, and pump bodies.

Technical Data

Machine Name Portable Dot Peen Marking Machine
Model HRC-030 HRC-030E
Machine Type Portable Marking LCD Control +
Portable Marking
Standard Marking Area 135×20mm
Optional Marking Area 90×20mm, 125×20mm
150×100mm, 200×100mm
Marking Depth 0.01~2mm
Marking Speed ≤50mm/second
(3-4 number/second for 3mm height letters)
Lifting Range 0-300 mm
Marking Accuracy 0.01 mm
Pin Hardness HRC 92
Power Supply 220V±10%, 50HZ
Air Pressure 0.2-0.6 Mpa
Machine Power ≤400 W
Working Environment -5~40 ℃
Making Head Weight 5 Kgs (Portable)
Whole Machine Weight 5 Kgs 30 kgs
