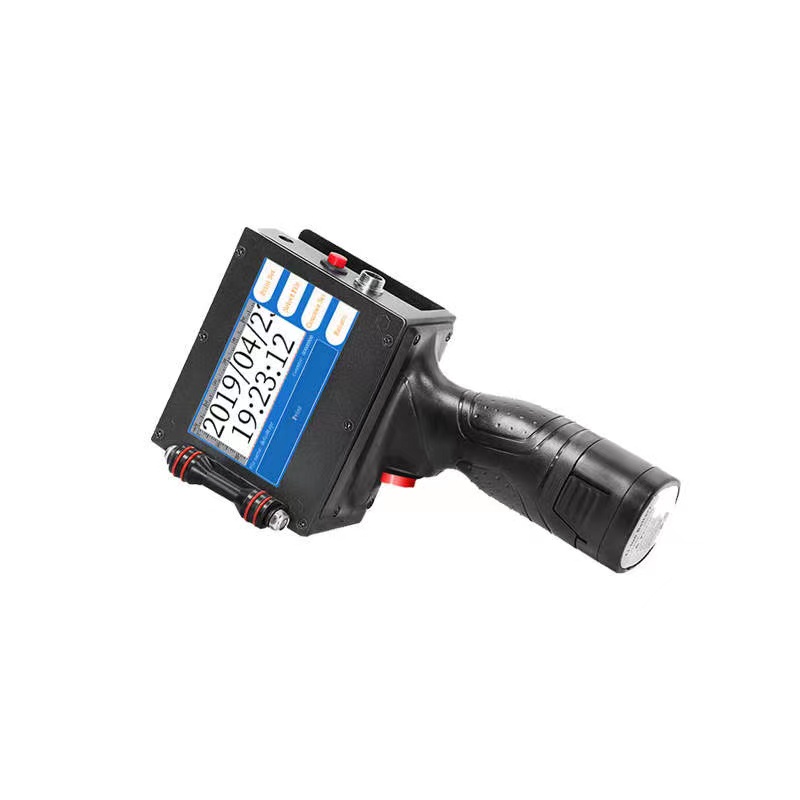

Our new product is a portable, handheld, ultra compact and light handheld inkjet printer equipped with an electromagnetic valve-based print head, a battery and wireless control. This unique portable inkjet printer weighing only 1580 grams has been developed for the users who use the freedom of marking, coding and labeling of their products at any place and at any time as the major criterion of choice. This handheld inkjet printer is also for the users who show a high demand for cost effectiveness and operating efficiency and as the same time very excessive demand for extended utility functions. The date code machine offers all basic capabilities typical of handheld inkjet printer.
Owing to the patented printing technology employed by it, the portable inkjet coder replaces obsolete handheld coding devices (such as stencil duplicators, ink roll coding devices, which are both labor-intensive and costly in use and also problematic for ink inefficiency reasons). It also can be called handheld inkjet printer, portable inkjet coder, small portable inkjet printer, handheld inkjet marking systems, wireless inkjet printer, date code machine, portable inkjet coder.
This portable inkjet printer is widely used in logistics, express, construction materials, wire and cable, metal, chemical cement, oil, elevator, wood, food and other industries.
Features of Inkjet Printer
1.Making durable and legible prints on a variety of types of surface, smooth, porous and also uneven surfaces of irregular shapes, such as pipes, barrels, bags, boxes, construction materials, elastic materials,
2.Non-contact marking (printing) technology, with only one drive roll requiring contact in order to synchronize printing,
3.Full freedom of printing offered by the portable inkjet printer which is controlled in a non-contact way,
4.Project import and export via a USB port,
5.Wireless data transfer from a computer and from external devices,
6.Automatic update of the date and time, service life/period of storage/expiry date, object numbers (via incremental or decremental counters), kody 1D & 2D code, data from external devices,
7.The possibility of editing and printing texts and graphics symbols with the use of Windows® (True Type) fonts as standard,
8.The availability of diacritical national characters, Chinese characters, Cyrillic and graphics characters (a set of manufacturer-defined characters) for information, warning, handling or other purposes as standard,
9.Supporting printing of various texts on successive lines or on various object sides,
10.Working with any PC via Firefox®; wireless inkjet printer-computer communications via WiFi,
11.Interactions with an external device to receive data from; wireless printer-device communications via Bluetooth.
|HRC-600B handheld inkjet printer
|Need to stick mark the height of the object
|The height of 70mm – contact two drum 35mm height – only contact with the roller printing, for example, only seven nozzle. Cylindrical objects, such as printing, as well as to the catheter and barrels of spray
|Spurt the code machine working position
|The nozzle diameter
|Standard 150 microns optional 150 microns, 170 microns to 200 microns
|The maximum number of characters in each text
|1300 characters (if using built-in font spurt the code machine, the control characters are included)
|At the same time stored in the spurt the code machine memory text and print the number of parameter set
|From 1 to 10 text through computer loading to spurt the code machine from 1 to 30 (optional)
|Used for communication, warning, disposal or other USES of national character and graphic character characteristic inflexion.
|The device can spray print any date and time formats, including valid/service period, the increment or decrement the counter, general counter (universal counter can be used to calculate parts, pallet, number of meters, etc.).
|Edit text and printing parameters, spurt the code machine control
|IBM system compatible with the computer, through the radio/radio spectrum communicate with printing machine (within 50 meters distance)
|Suggested that the minimum requirements
for the computer
|IBM compatible computer, equivalent to pentium 200, 32 MB RAM, 20 MB of disk space available to run the control program is 1.5 or higher of EBS – 250 spurt the code machine, computer need to install any of the following operating system: Windows ® 98 se/ME/NT / 2000 / XP/Vista ® / 7 if your computer is running Windows NT ® program, only need to spurt the code machine with a RS – 232 interface connection can realize communication (not via USB) can reach 60 of the machine will summarize to the remote network by computer or radio terminal
|In the process of spray print, regardless of the spurt the code machine rotational speed is fast or slow, timing can be synchronous with the roller speed, the time interval with internal can also generate synchronization.
|The power supply
|A full charge when running roughly time when recharge the built-in battery temperature at 20 degrees, the machine can last for 50 hours non-stop printing, insufficient battery automatic display Automatically through external dc 24 v / 1 A power pack charging charging time when she was 150 minutes (2.5 hours) charge cycle: 500 times (battery capacity is 70% of the initial capacity)
|The cartridge capacity Ink can be used to bayonet fixed container can be removed. The main components of the ink juice with alcohol, acetone and water. There are white, yellow, green, red and black are available, you can order in our directory column. 110 ml can print 7 x 5 pixels matrix of about 100000 words operator or 16 x 10 pixels matrix about 17, 000 characters.
|Working temperature range
|Used for water-based ink jet printing of storage temperature should be controlled between 1 to 45 degrees, the type of ink used to spray print acetone or ethanol storage temperature should be controlled between 10 degrees to 45 degrees below zero.
|Vertical size (length/width/height)
|226/75 226/75/259 mm / 255 mm
