laser cleaning machine for rust removal

laser cleaning machine for rust removal

The laser cleaning equipment relies on the advantages of the MOPA structure and it adopts100 watts JPT brand pulsed fiber laser source as the cleaning light source.
This MOPA type fiber laser source has the characteristics of independently adjustable pulsedwidth and frequency.
It can maintain a high and stable peak laser power output even when the pulse width and frequency are changed to adapt to a wide range of cleaning situations.
The portable laser head is small and light, and the machine can be used for a long time. The button and handle are integrated design, which is simple and easy to use.
This laser paint removal machine with portable and integrated design, super integrated injection molding body, slow down attacking design, it is compressive, anti-drop and wear-resistant.
The laser cleaning equipment adopts draw-bar box design, can be carried easily for high-speed railway or air shipment.

Description

Fiber Laser Cleaning Machine

(Model: PE-100J)
Contact: Maggie Wechat/Whatsapp: +8613545142322 Email: maggie@hrclaser.com

Overview:

The laser cleaning machine is a new generation of high-tech product for surface cleaning.
It’s very easy to install and operation.It could be used with no chemical reagents,no media, dust-free and anhydrous cleaning,with the advantages of autofocus,fit crank surface cleaning,high surface cleanliness. The laser cleaning machine
can clear the surface resin, oil, dirt, dirt, rust, coating, coating, paint, etc.Laser rust removal machine is with portable laser gun.

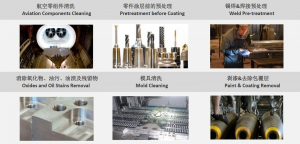

Application Fields

The laser cleaning machine is widely used in the shipping industry,autoparts,rubbermold,high end machine tools,tyremold,track,environmental protection industry and other fields,for example,the cleaning of aviation components,cleaning of weapons and equipment, and precise ester cleaning in precision machinery industry.



Contact US

Technical Data

Product Name
HRC Laser – Laser Cleaning Machine Trolley 100W MOPA JPT Fiber Laser Rust Remover CE Approved
Model
PE-100J
Focus Length
254mm
Scanning Width
170 mm
Scanning Speed
10000 mm/s
Output Working Method
Pulse / Continuous
Output Fiber Cable Length
5 Meters
Average Output Power
>100 Watts
Cooling Method
Air Cooling
Voltage
220 V
Max Power Consumption
<450 Watts
Whether Anti-high Reflection
Yes
Working Temperature Range
0 – 40℃
Storage Temperature Range
-10 – 60℃
Laser Cleaning Machine Size
617mm x 469mm x 291mm
Whole Machine Weight
28 kgs
Laser Head Weight
0.62 kgs
FAQ

Q: What’s the package?

A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.

Q: Will the package damaged during transportation?

A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.

Q: How to install and run the machine?

A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.

Q: How can I do if the machine goes wrong?

A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
